Rainy Filters

Application

Once filtered through Rainy Filters, the water can be stored for reuse in various applications such as gardening, washing, or domestic needs, or redirected to recharge groundwater, ensuring efficient and sustainable water utilization.

Self Cleaning

Rainy’s self-cleaning filters ensure high efficiency and minimal maintenance, eliminating the need for frequent manual cleaning.

Dual Intensity

Our filters are designed for high efficiency, seamlessly managing any intensity of rain, from a light drizzle to heavy downpours.

Easy to Install

Easy installation supported by a detailed instruction manual and installation video, ensuring any local plumber can handle it with ease.

Low Maintenance

Our filters are built to last, offering long-term reliability and easy maintenance with minimal effort.

Salient Features

• Self Cleaning | Auto Flush Out | Works on Gravity

• Dual Intensity | Withstands High Intensity Rainfall

• Easy to Install | 360° Rotatable

• Low Maintenance | High Efficiency | Cost Effective

• HDPE Material | SS-304 Food Grade Material

• Unmatched 10 Years Warranty

Technical Specifications

Suitable for Area: Upto 120 SQMTRS

Intensity of Rainfall: 5 mm/Hour to 75 mm/Hour

Filter Type: Open ended, Non-clog

Working Principle: Cohesive Force & Centrifugal Force

Operating Pressure: 1 foot of Gravity Head (0.060kg/cm2)

Max Discharge at (CWO): 120 Liters per minute

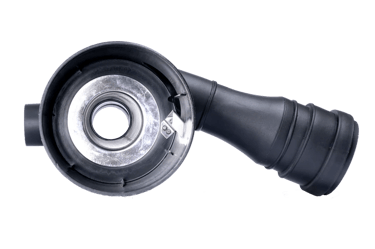

Filter Element: SS-304 Multi-Surface Screen - Food Grade

Mesh Size: 250 Microns

Inlet Size: 90 MM

Clean Water Outlet size: 63 MM

Drain Outlet size: 90 MM

Filter Housing: UV Stabilized - HDPE

Filter Efficiency: Above 90%

Source of Power: Gravity

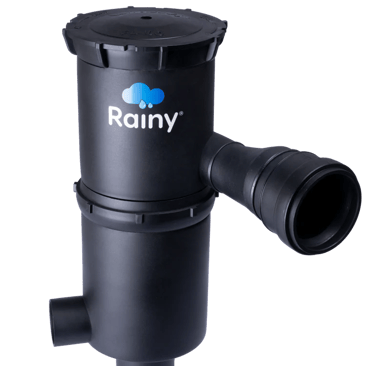

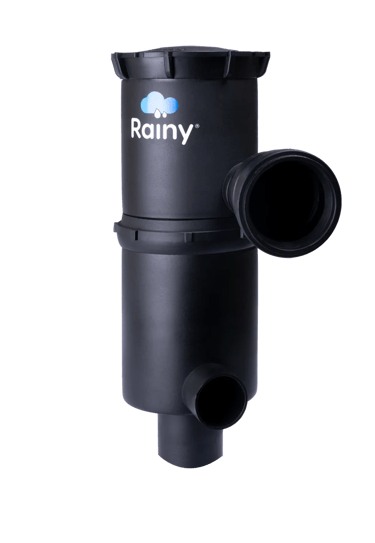

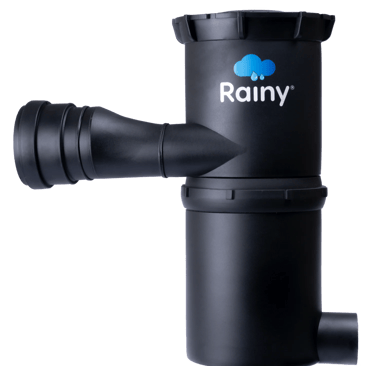

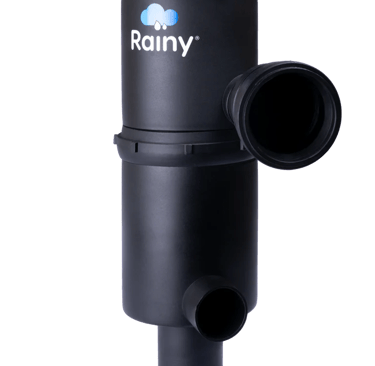

FL 80

Technical Specifications

Suitable for Area: Upto 180 SQMTRS

Intensity of Rainfall: 5 mm/Hour to 75 mm/Hour

Filter Type: Open ended, Non-clog

Working Principle: Cohesive Force & Centrifugal Force

Operating Pressure: 1 foot of Gravity Head (0.060kg/cm2)

Max Discharge at (CWO): 180 Liters per minute

Filter Element: SS-304 Multi-Surface Screen - Food Grade

Mesh Size: 250 Microns

Inlet Size: 90 MM

Clean Water Outlet size: 75 MM

Drain Outlet size: 90 MM

Filter Housing: UV Stabilized - HDPE

Filter Efficiency: Above 90%

Source of Power: Gravity

FL 150

Technical Specifications

Suitable for Area: Upto 250 SQMTRS

Intensity of Rainfall: 5 mm/Hour to 75 mm/Hour

Filter Type: Open ended, Non-clog

Working Principle: Cohesive Force & Centrifugal Force

Operating Pressure: 1 foot of Gravity Head (0.060kg/cm2)

Max Discharge at (CWO): 250 Liters per minute

Filter Element: SS-304 Multi-Surface Screen - Food Grade

Mesh Size: 250 Microns

Inlet Size: 110 MM

Clean Water Outlet size: 90 MM

Drain Outlet size: 90 MM

Filter Housing: UV Stabilized - HDPE

Filter Efficiency: Above 90%

Source of Power: Gravity

FL 250

FL 350

Technical Specifications

Suitable for Area: Upto 375 SQMTRS

Intensity of Rainfall: 5 mm/Hour to 75 mm/Hour

Filter Type: Open ended, Non-clog

Working Principle: Cohesive Force & Centrifugal Force

Operating Pressure: 1 foot of Gravity Head (0.060kg/cm2)

Max Discharge at (CWO): 360 Liters per minute

Filter Element: SS-304 Multi-Surface Screen - Food Grade

Mesh Size: 250 Microns

Inlet Size: 110 MM

Clean Water Outlet size: 110 MM

Drain Outlet size: 90 MM

Filter Housing: UV Stabilized - HDPE

Filter Efficiency: Above 90%

Source of Power: Gravity

Technical Specifications

Suitable for Area: Upto 500 SQMTRS

Intensity of Rainfall: 5 mm/Hour to 75 mm/Hour

Filter Type: Open ended, Non-clog

Working Principle: Cohesive Force & Centrifugal Force

Operating Pressure: 1 foot of Gravity Head (0.060kg/cm2)

Max Discharge at (CWO): 480 Liters per minute

Filter Element: SS-304 Multi-Surface Screen - Food Grade

Mesh Size: 250 Microns

Inlet Size: 110 MM

Clean Water Outlet size: 110 MM

Drain Outlet size: 110 MM

Filter Housing: UV Stabilized - HDPE

Filter Efficiency: Above 90%

Source of Power: Gravity

FL 500
